Flicker-less B&W Video Tap

General Description

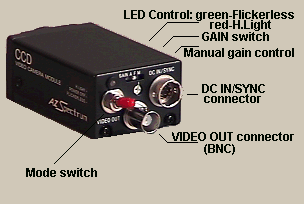

The Flicker-less CCD B&W Video Tap is an extremely compact device (modified Sony XC-ST50 or XC-75) which provides a high-resolution image with 768x494 pixels and flicker-less speed of a 24fps motion picture camera. This unit has a rear power ON/OFF switch with a LED indicator and panel gain control switch. It is small ( only 1.75 x 1.5 x 3.6 inches), light (only 140g) and has a low power consumption just 1.5 W (125mA).

Specifications

• Picture area: 6.4 x 8.6 mm
• Picture element: 768(H) x 494(V)
• Signal system: EIA
• Scanning system: 525 lines, 2:1 interlace
• Two modes: Flicker-less and High Light
• BNC video signal output connector
• Flicker reduction: 60% for 24fps, 100% for 30fps
• Sync system: Internal/external (switched automatically)
• Min. illumination: 0.3 Lux (XC-ST50), 0.5 Lux (XC75), F1.4 AGC mode
• Gain control: AGC/ Fixed gain 0dB/ Manual gain 0-20dB
• Power requirement: 11-15V DC
