HD-SDI 1080P IVS conversion for Arriflex 235

HD-SDI 1080P IVS conversion converts a film camera's standard definition (SD) PAL or NTSC integrated video system (IVS) to a high definition (HD) video system with a serial digital interface (SDI) video output. It involves replacing the original SD image sensor and SD IVS electronics with new HD one. After IVS conversion, a higher resolution image (1920x1080 pixels) can be displayed on a monitor and recorded during filming.

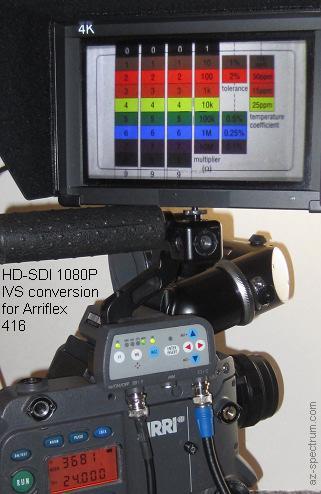

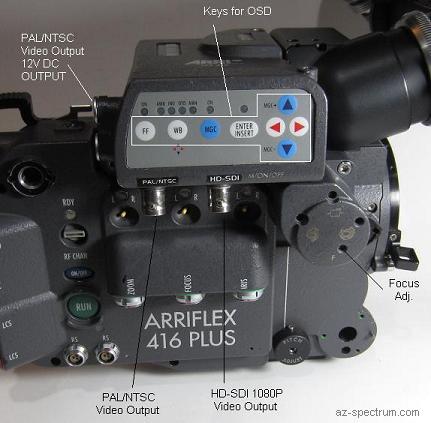

HD-SDI 1080P IVS conversion for Arriflex 416

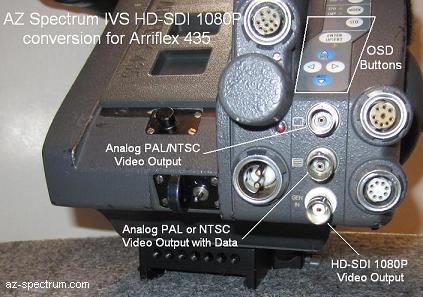

HD-SDI 1080P IVS conversion for Arriflex 435

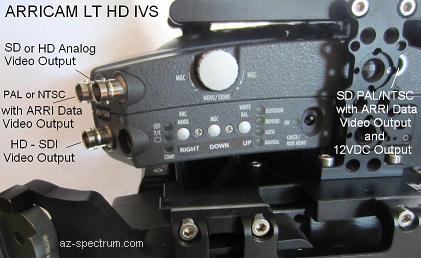

HD-SDI 1080P IVS conversion for Arricam LT

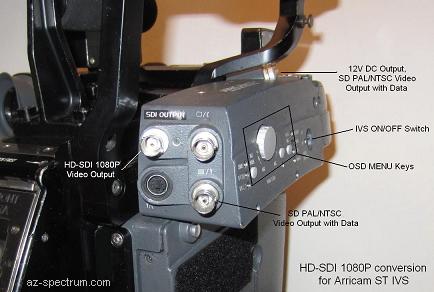

HD-SDI 1080P IVS conversion for Arricam ST

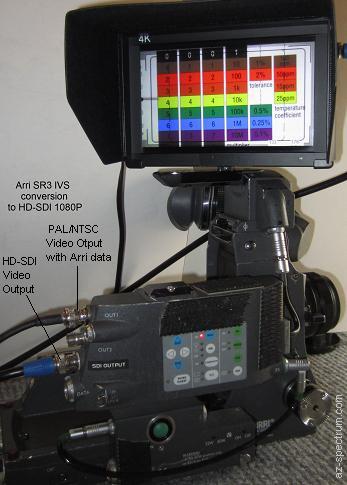

HD-SDI 1080P IVS conversion for Arriflex SR3







 HD-SDI 1080P flicker-free Video Assist for Arriflex SR3, 35III and 35BL

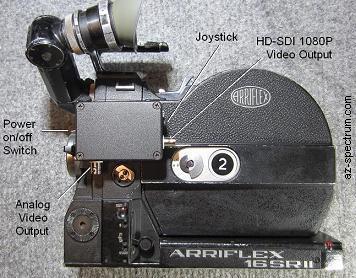

HD-SDI 1080P Integrated Color Video Assist for Arriflex 16SR2 and SR2HS

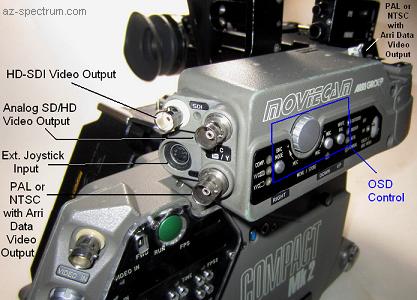

HD-SDI 1080P IVS conversion for Moviecam Compact Mk2

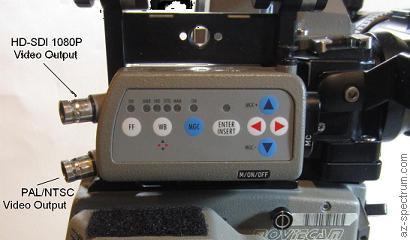

HD-SDI 1080P IVS conversion for Moviecam SL Mk2

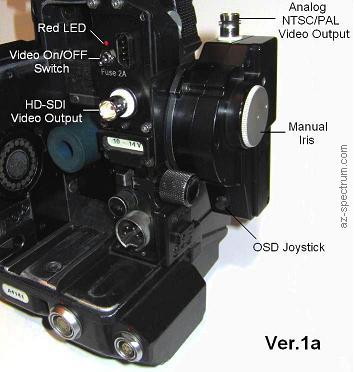

HD-SDI 1080P Integrated Color Video Assist for Aaton XTR Prod







HD-SDI 1080P Color Video Assist for Aaton XTR Prod and Xtera

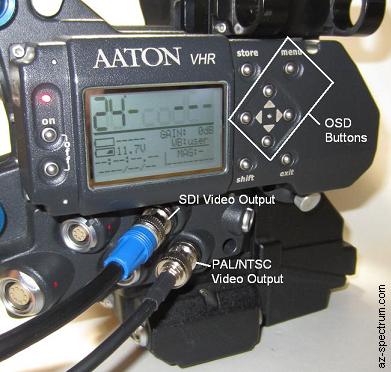

  HD-SDI 1080P flicker-free VHR video-assist conversion for Aaton Xtera

 Aaton Xtera VHR video-assist HD-SDI 1080P flicker-free conversion ver.2

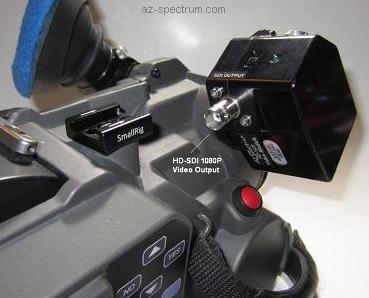

Aaton Minima Video Assist HD-SDI 1080P conversion

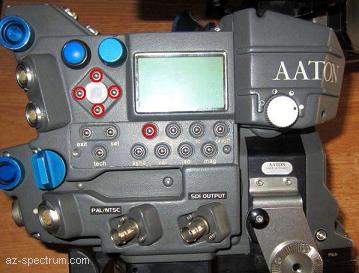

Aaton Penelope VHR video-assist HD-SDI 1080P conversion ver.1







 HD-SDI 1080P flicker-free conversion for Aaton Penelope VHR video-assist (ver.3)

  HD-SDI 1080P flicker-free VHR video-assist conversion for Aaton Penelope

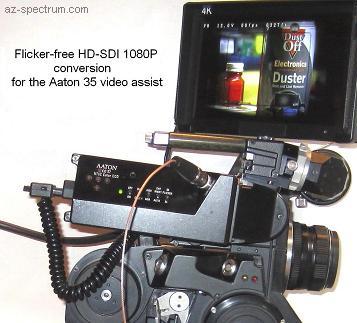

Aaton35 flicker-free HD-SDI 1080P Video Assist

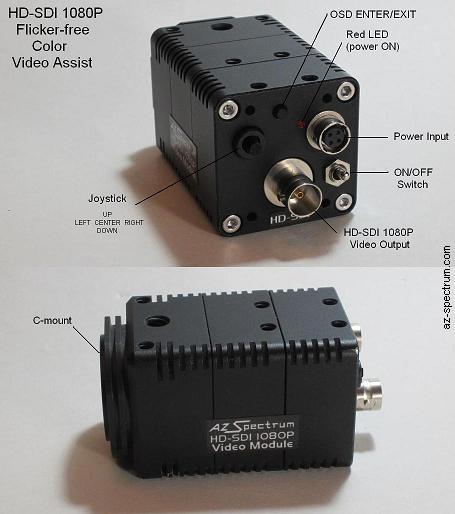

HD-SDI 1080P flicker-free Video Assist

Specifications:
HD active picture elements: 1920 (H) x 1080 (V)
Video image is controlled by a joystick and on-screen display (OSD) menu
Metadata can be added to the HD video image: battery voltage, RUN/STOP, camera speed, film counter
Video output (BNC connector):
3G-SDI (SMPTE424M Compliant) 1080P60/59.94/50
HD-SDI (SMPTE292M Compliant) 1080P30/29.97/25, 720P60/59.94/50
Minimum illumination: 0.5 Lux at F1.2 and camera speed 24fps
Internal sync. system
Selectable mode: color, B&W
Selectable: AWB, manual white balance
Selectable: gamma, contrast , sharpness
Mirror image, normal image, horizontal flip, vertical flip, horizontal-vertical flip
Line generator: both horizontal and vertical with all available colors
Digital zoom
Input voltage: 10 to 28 VDC
Input power/camera's signal receptacle: 6 pin HRS
Power consumption: 4.5W - 1080P, 3.5 W - 720P
Dimensions: 80mm (L) x 40mm (W) x 40mm (H)
Weight: 300g
Mount: C-mount (depth 6.7mm)
Housing: black anodized aluminum
